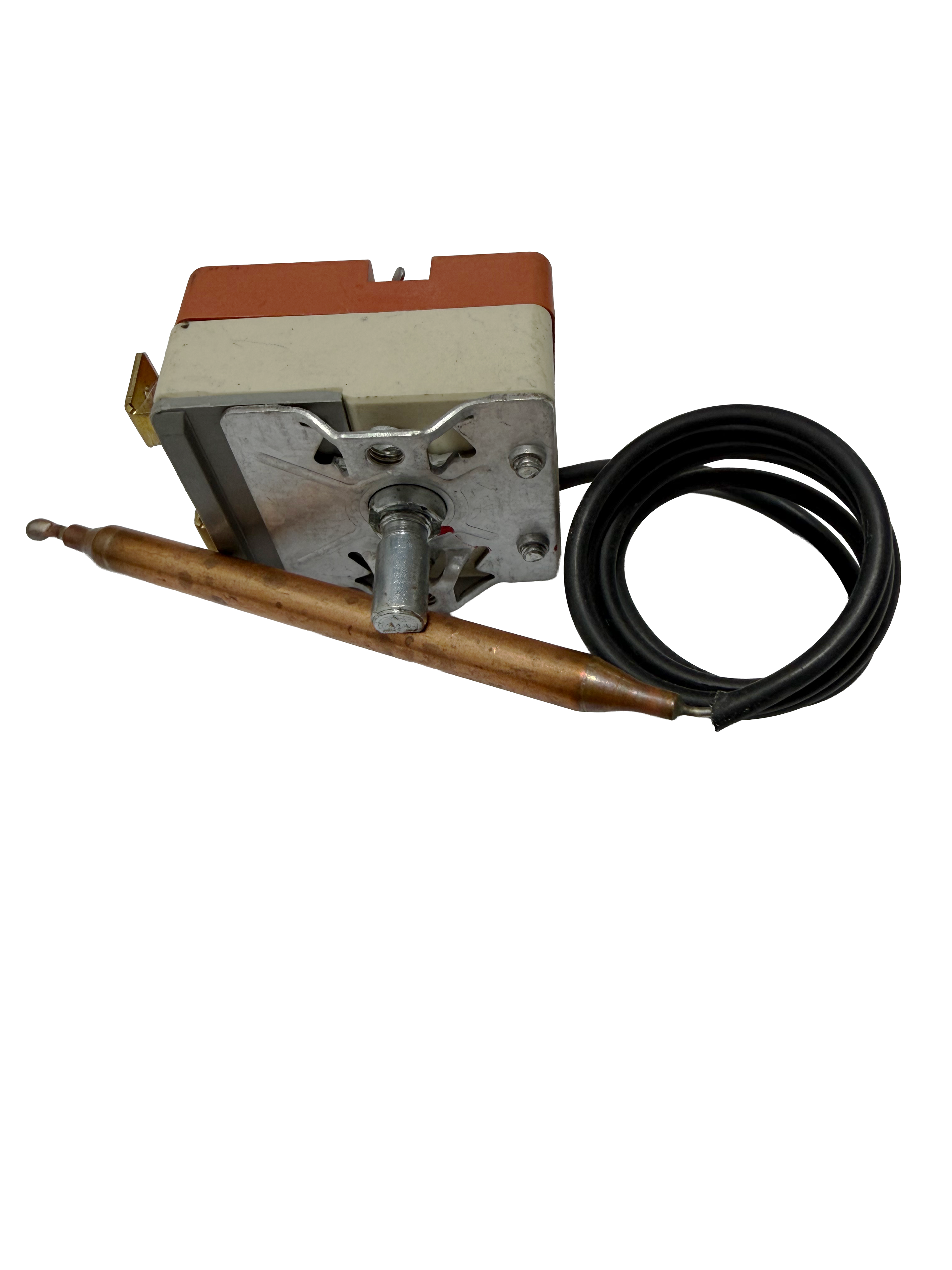

SR-C-320-16A
Stable mechanical temperature control for heating equipment and appliances.
Mechanical controlTechnical specifications
- Product model
- SR-C-320-16A
- Temperature / range
- -35 ℃ – 320 ℃
- Rated voltage
- 250 V / 400 V
- Rated current
- 250 V: C-1 16 A; C-2 4 A400 V: C-1 10 A; C-2 3 A
- Terminal / switch type
- Single-pole double-throw (SPDT)
Specifications shown are reference values. Final configuration is subject to the confirmed application and order requirements.
