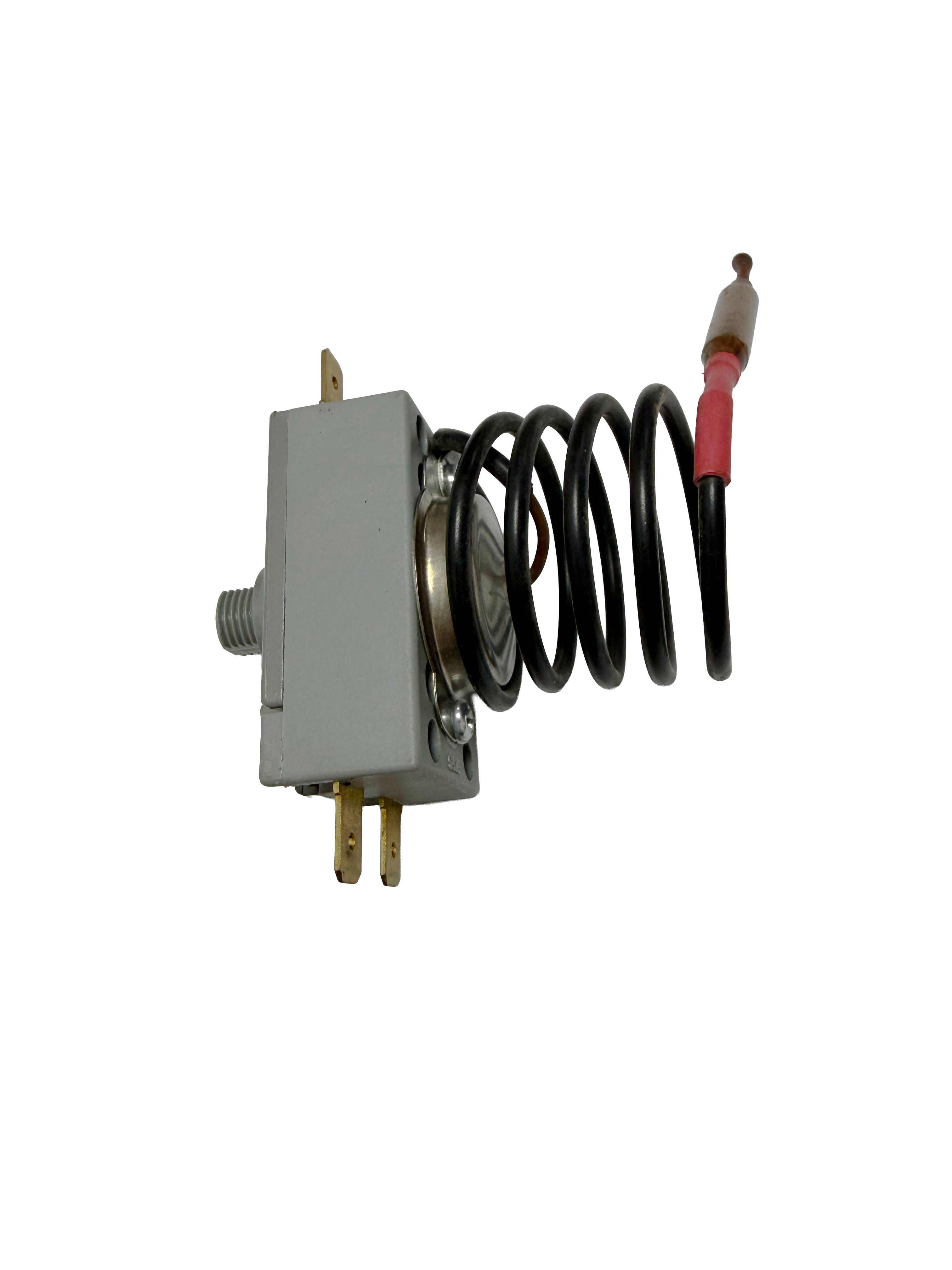

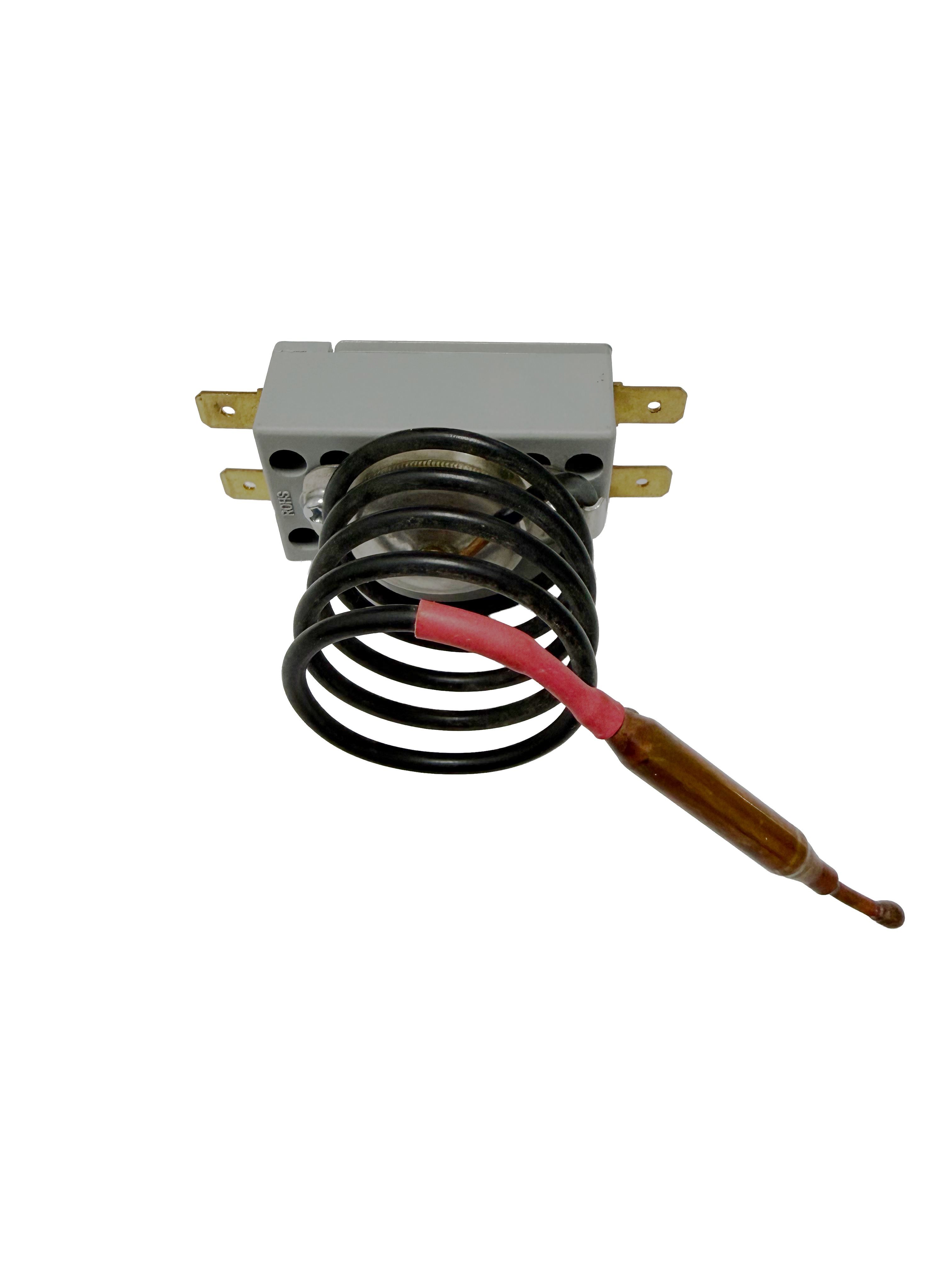

SR-C-100-20A
Stable mechanical temperature control for heating equipment and appliances.
Mechanical controlTechnical specifications
- Product model
- SR-C-100-20A
- Temperature / range
- 80 ℃ – 130 ℃
- Rated voltage
- 250 V
- Rated current
- 20 A
- Terminal / switch type
- Double-pole single-throw (DPST), with manual reset
Specifications shown are reference values. Final configuration is subject to the confirmed application and order requirements.
